Choose from our range of premium hinges for use with our bespoke internal doors. The collection includes traditional butt hinges as well as fully concealed hinges. Each comes in your choice of six finishes to enable you to match other door ironmongery.

Lever Door Handles

Lever Handles

Locks & Latches

Latches & Locks

Discover more door hardware

Discover Envo Timber

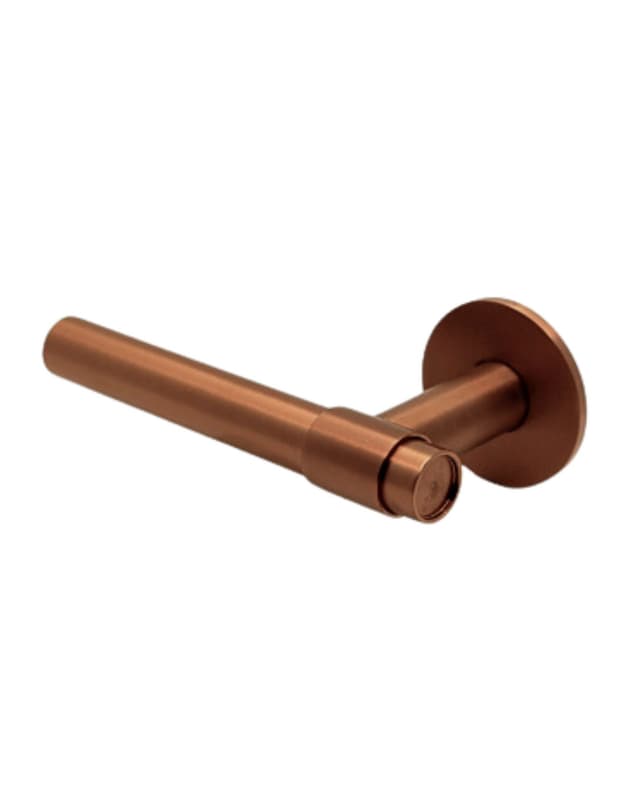

Looking for lever handles?

Calculators.

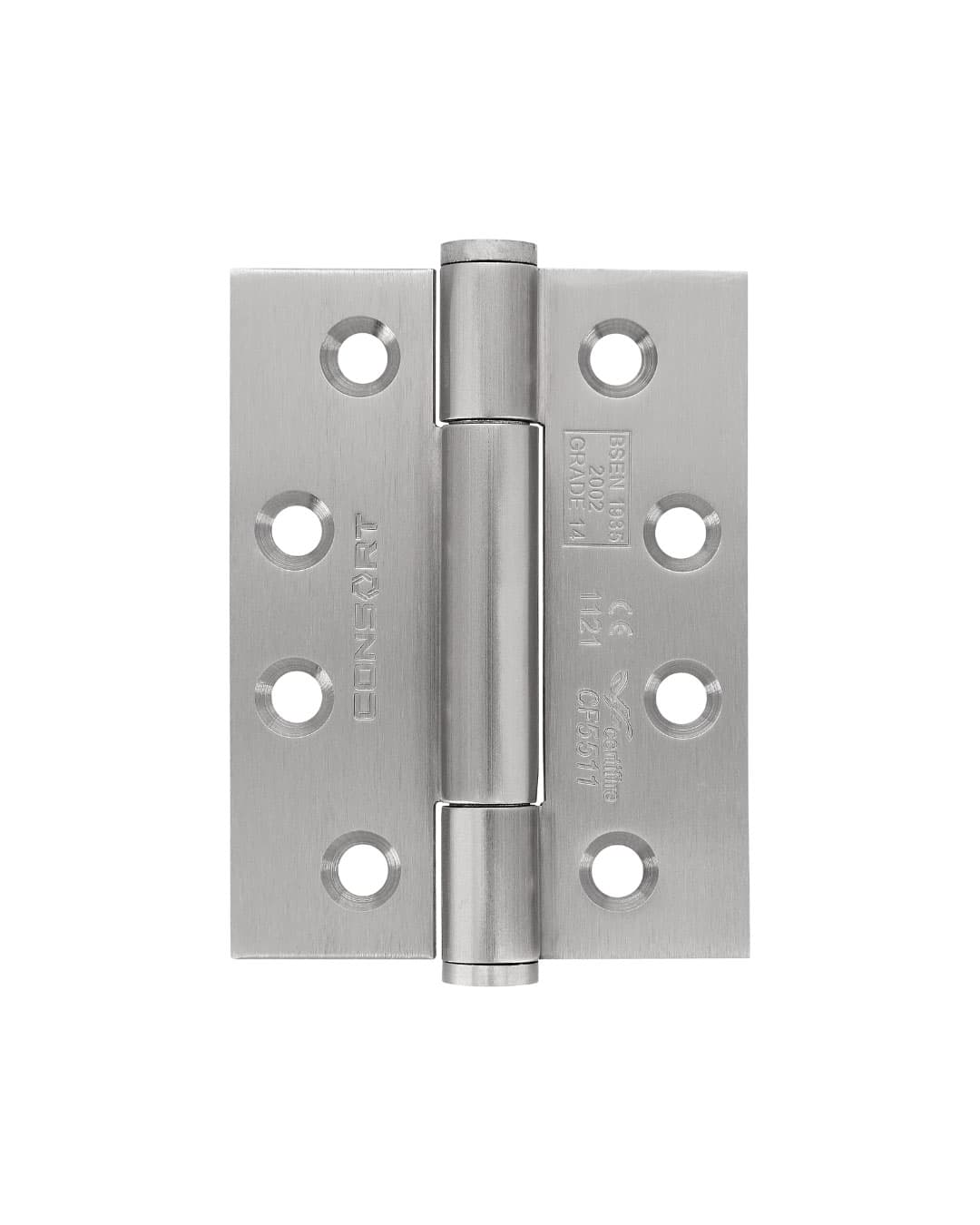

A heavy-duty, concealed bearing, maintenance free butt hinge with security stud. Suitable for timber or steel doors with a load bearing capacity of up to 160kg and fire-rating up to FD120 timber and FD240 metal door and frame applications. A heavy-duty, concealed bearing, maintenance free butt hinge. Available in 6 premium finishes to match other door hardware.


EBH1001 Square Butt Hinge (160kg)

Our EBH1001 hinge is available in 6 premium finishes.

Finish options

Related products

Envo Timber

Envo Flush

Envo Steel

Our range of door hardware covers hinges, locks, lever handles, and associated accessories all in a matching PVD finish. We also offer a wide variety of ironmongery and door handles for sliding pocket doors. Select from our collection of finishes and timeless designs.

Envo Hardware

Technical Data Sheet

Technical resources.

EBH1001 Butt Hinge (160kg)

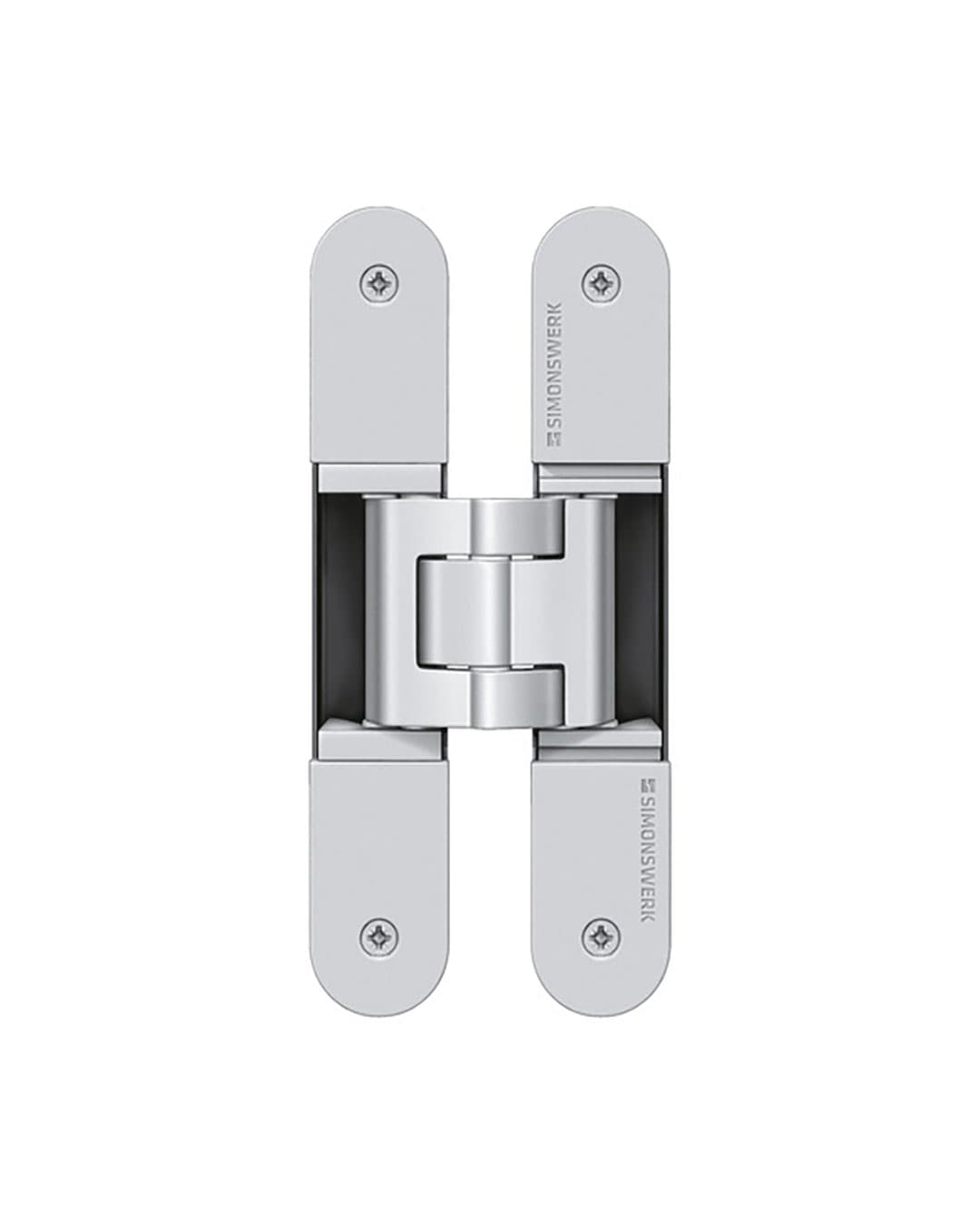

A 3D adjustable, concealed hinge for doors up to 80kg. Suitable for timber and steel interior doors. Opening angle up to 180 degrees


ECH1009 3D Concealed Hinge (80kg)

Our ECH1009 hinge is available in 6 premium finishes.

ECH1009 concealed hinge drawing

A fire-rated 3D concealed hinge with integrated intumescent kit for unrebated doors up to 80kg. Suitable for timber and steel interior doors. Opening angle up to 180 degrees.


ECH1010 3D Concealed Hinge (FR 80kg)

Our ECH1010 hinge is available in 6 premium finishes.

A 3D concealed hinge for heavy duty doors up to 120kg. Suitable for timber and steel interior doors. Opening angle up to 180 degrees


ECH1011 3D Concealed Hinge (120kg)

Our ECH1011 hinge is available in 6 premium finishes.

A 3D concealed hinge for heavy duty doors up to 120kg. Suitable for fire-rated timber and steel interior doors, the hinge has an integrated intumescent kit for unrebated doors. Opening angle up to 180 degrees.


ECH1004 3D Concealed Hinge (FR 120kg)

Our ECH1004 hinge is available in 6 premium finishes.

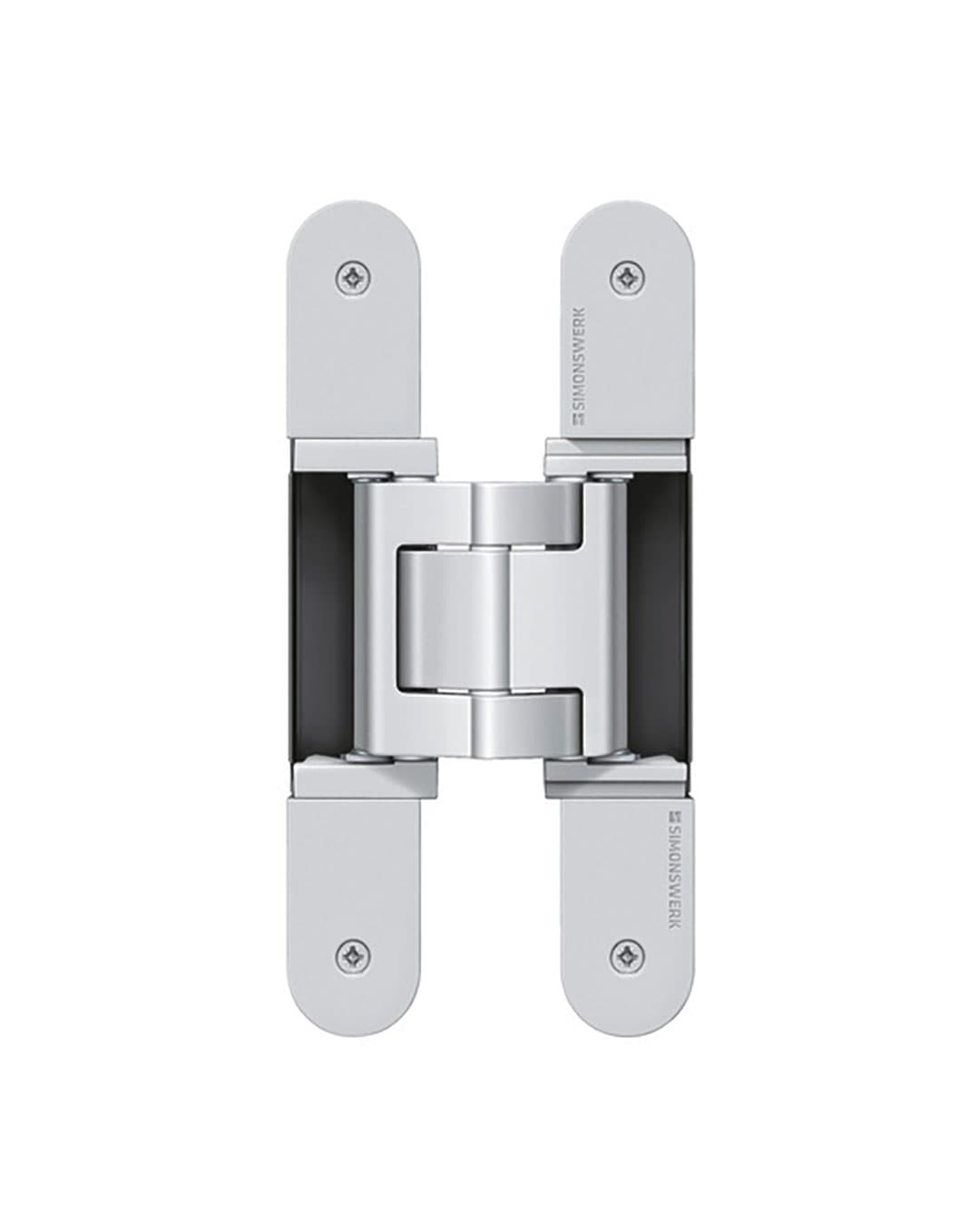

A 3D concealed hinge for unrebated internal doors with up to 8mm of cladding on both sides. Suitable for timber and steel interior doors up to 100kg. Opening angle up to 180 degrees.


ECH1005 3D Concealed Hinge (8mm Cladding / 100kg)

Our ECH1005 hinge is available in 6 premium finishes.

A 3D concealed hinge for fire-rated unrebated internal doors with up to 8mm of cladding on both sides. Suitable for up to FD30 for timber and steel interior doors up to 100kg. Opening angle up to 180 degrees.


ECH1006 3D Concealed Hinge (8mm Cladding / FR 100kg)

Our ECH1006 hinge is available in 6 premium finishes.

Combine this concealed hinge with our ECH1008 intumescent kit for a fire rating of up to FD60 (BS EN 1634-1:2014). Suitable for heavy-duty timber and steel unrebated doors up to 120kg.

ECH1007 3D Concealed Hinge (120kg)

Our ECH1007 hinge is available in 6 premium finishes.

Intumescent kit for use with ECH1007 concealed hinge, suitable for FD30/FD60 rated fire doors sets in accordance with BS EN 1634-1:2014.


ECH1008 Intumescent Kit

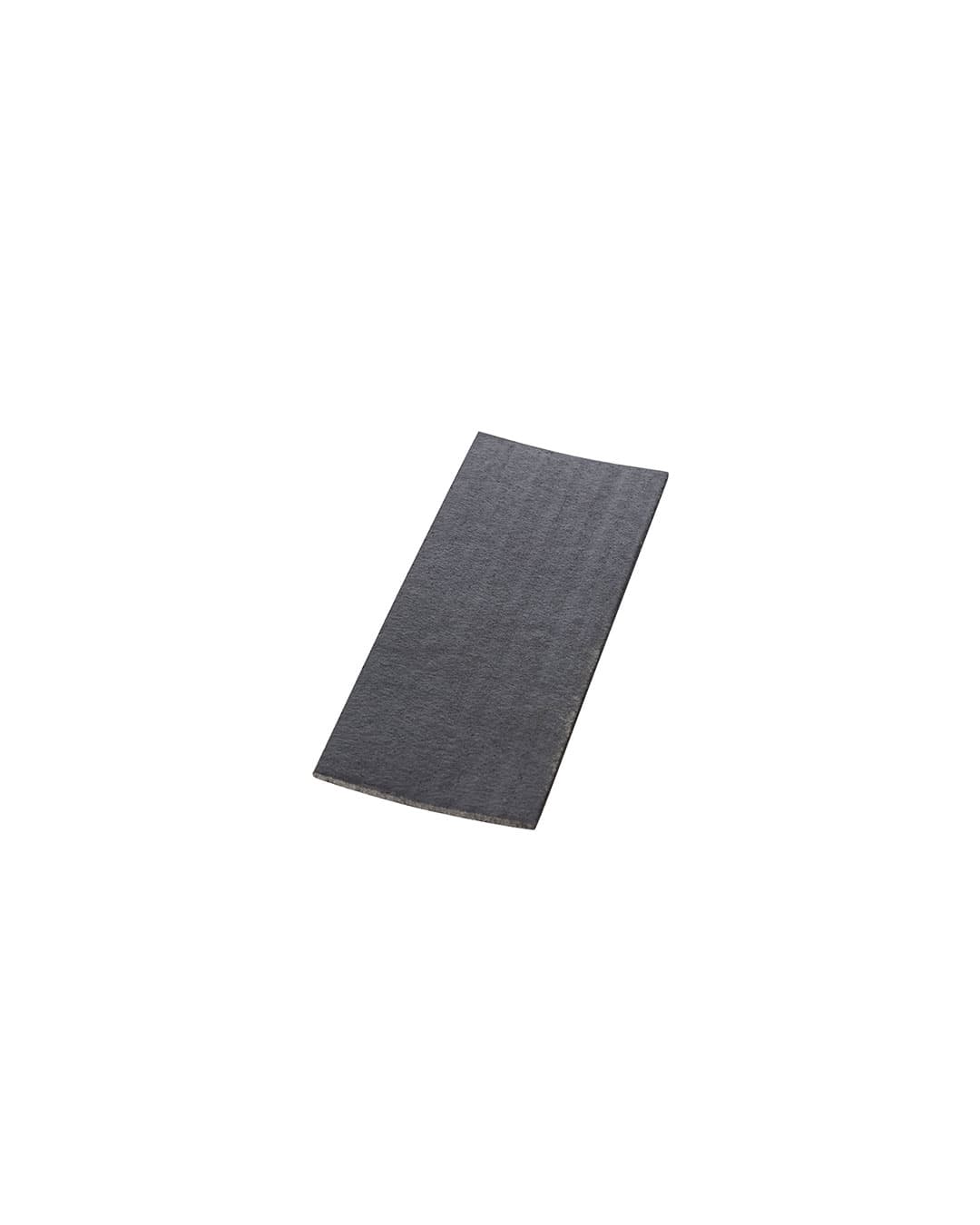

An intumescent pack for use with our EBH1001 and EBH1001 butt hinges, suitable for FD30 or FD60 fire-resistant doors.


EBH1003 Intumescent Pack

EBH1003 Intumescent pack

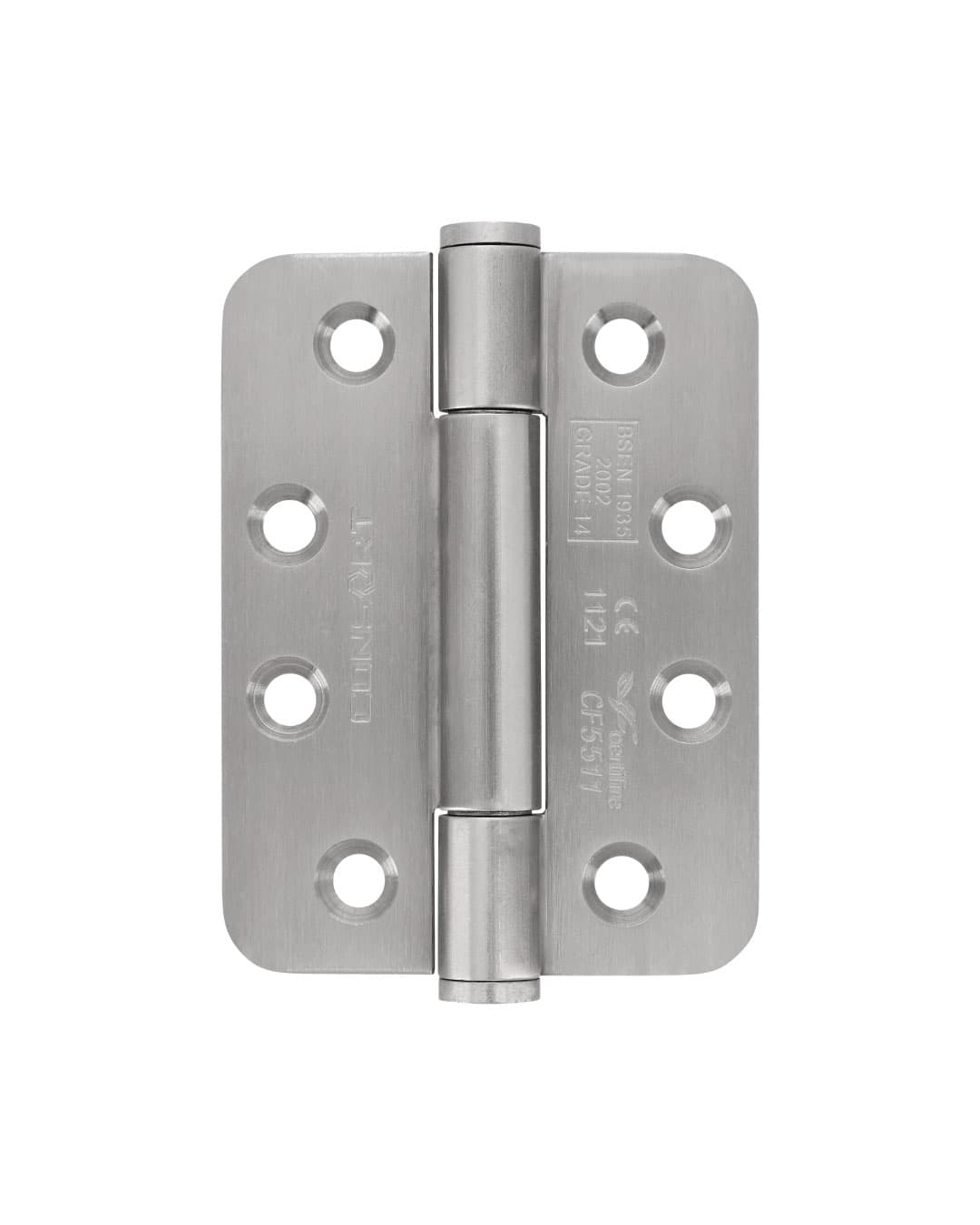

A heavy-duty, concealed bearing, maintenance free radius butt hinge. Suitable for timber or steel doors with a load bearing capacity of up to 160kg. Fire-rated up to FD120 timber and FD240 metal door and frame applications. Available in 6 premium finishes to match other door hardware.


EBH1002 Radius Butt Hinge (160kg)

Our EBH1002 hinge is available in 6 premium finishes.

Hinges
