ECH1009 3D Concealed Hinge (80kg)

Envo Hardware

ECH1009 3D Concealed Hinge (80kg)

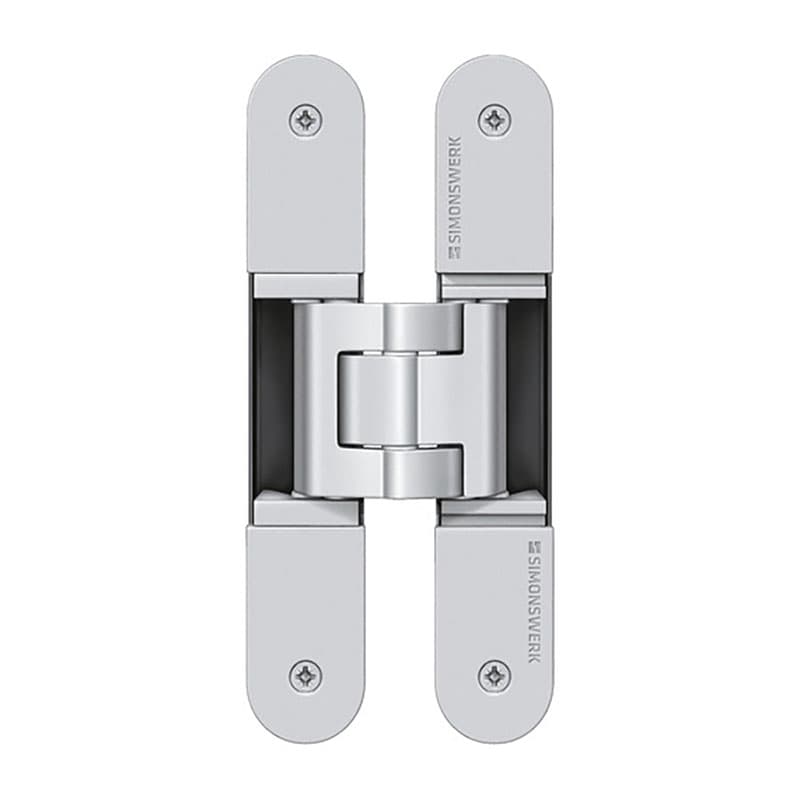

A 3D adjustable, concealed hinge for doors up to 80kg

A 3D concealed hinge for unrebated doors up to 80kg. Suitable for timber and steel interior doors.

Additional Features:

  • 3D adjustment (side +/- 3.0 mm, height +/- 3.0 mm, compression +/- 1.0 mm)

  • Opening angle up to 180 degrees

  • Right hand and left hand applicable

  • Maintenance-free slide bearings

A 3D adjustable, concealed hinge for doors up to 80kg
Suitable for timber & steel doors
6 finish options
Up to 80kg
Reversible for left and right
Finish options
Our ECH1009 hinge is available in 6 premium finishes.
satin brass 3D concealed hinge
Satin Brass
3D concealed hinge in Bronze
Bronze
Dark Bronze concealed 3D hinge
Dark Bronze
matt black 3D hinge
Matt Black
Stainless Steel Look 3D concealed hinge
Stainless Steel Look
polished nickel 3D concealed hinge
Polished Nickel
Related products

Discover more hardware for hinged timber or steel doors.

Fire-Rated

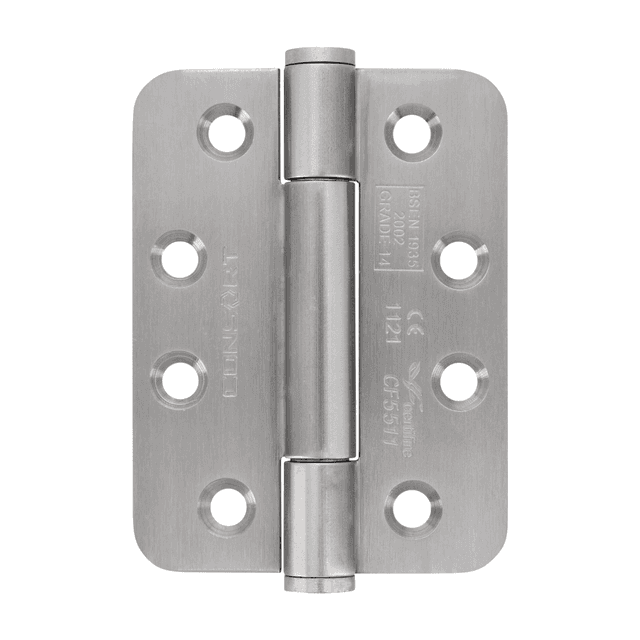

EBH1004 butt hinge
EBH1002 Radius Butt Hinge
Fire-Rated

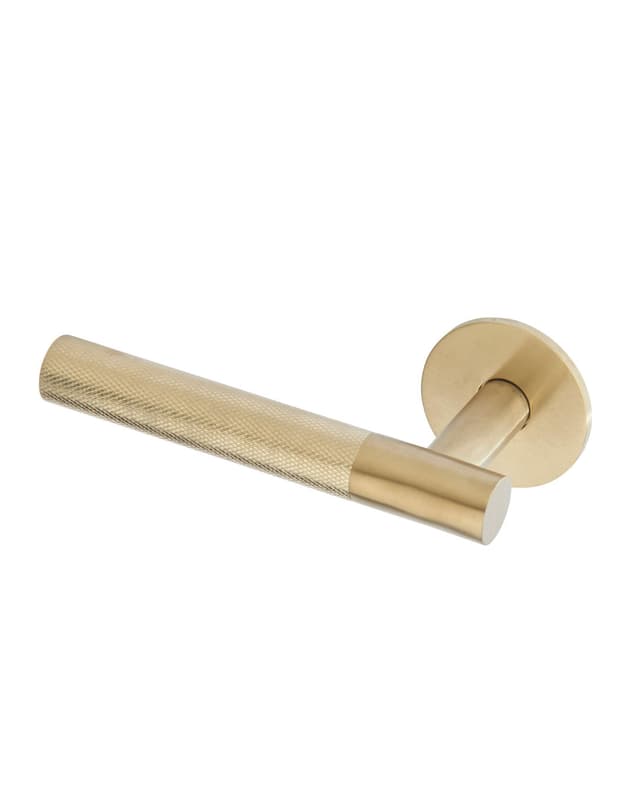

Carlyle lever handle with texture hand grip
Carlyle Lever Handle
Fire-Rated
Thurloe lever handle in a matt black pvd finish
Thurloe Lever Handle
Fire-Rated

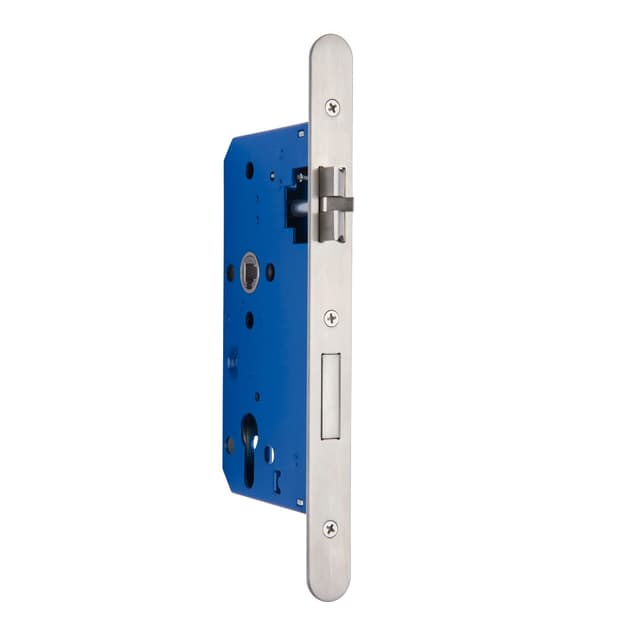

ELK1005 Traditional Euro Latch Lock Square Forend
